ENTERING & BOARDING

Minimize operational risks.

Minimize operational risks.

JK Defence & Security offers a wide range of ladders, hooks, masts, launchers and vertical access equipment for both maritime and urban operations. Only first-class products are used, which have already proven themselves in many NATO armed forces. In Germany, JK Defence & Security is the exclusive representative of technology leader H. Henriksen with its REBS product line and other brands such as HQH or ATLAS.

Fulfilling the mission and minimizing operational risks for the operator is the mission. Maximum stability, high speed, low weight and minimal signature are the characteristics that are paramount. All products we offer are therefore designed using the strongest materials such as carbon fiber or titanium and aerospace grade aluminum.

LADDERS

We offer a wide range of tactical ladders for maritime and urban applications. Rigid ladders are available in various designs with a wide range of hooks and accessories and made of different materials such as aluminum or carbon fiber. All ladders are sectionally extendable and some models can be converted into bridges and stretchers.

Flexible rope or wire ladders feature light weight and small pack size, but require additional poles or launchers to be used.

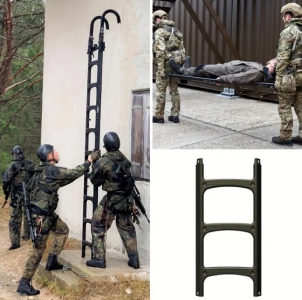

REBS Carbon Multi Ladder (CML)
Modular Carbon Ladder

Section length: 0.9m / section weight: 1.85kg
6 sections can be connected (hanging & leaning)
Can be used hanging, leaning, as stretcher, bridge or scaffold ladder
Combineable with various tactical hooks from REBS

REBS Tactical Ladder
Aluminium Pole Ladder

Section length: 1.6m / Section weight: 2.3kg
Max. System height: 10m
Suitable for maritime and urban applications
Combinable with various tactical hooks from REBS

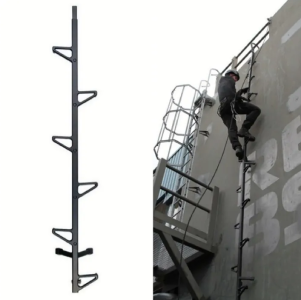

REBS Ultralight Pole Ladder (UPL)
Carbon Pole Ladder

Section length: 1.7m / Section weight: 1.7kg
System height: 12m (incl. Wire Ladder)
Suitable for maritime and urban applications
Quick connectors for fast, safe and easy assembly

HOOKS

Whether in maritime or urban use – most ladders need a stabilizing anchor at their highest point to secure the ascent. Our product range includes a wide range of single and double hooks made of different materials, as well as other accessories, e.g. for breaching glass windows. All hooks are characterized by a high performance-to-weight ratio.


REBS Giraffe Tracer Hook
Hook for pneumatic Giraffe Tracer Pole

Carbon hook for REBS Giraffe Tracer
Minimum Break Load (Tip): 1,500kg
Weight: 1.7kg

REBS Tactical Hook
Tactical Aluminium Hook

Lightweight, made of forged aluminium
Available in 7″, 10″ or 13″
Minimum break load (Tip): 1,000kg (7″) / 1,200kg (10″) / 2,170kg (13″)
Weight: 0.9kg (7″) / 1.1kg (10″) / 2.2kg (13″)
7” and 10” are combineable with the following REBS Ladders: Tactical Ladder, CML, UPL
13″ can additionally be combined with: Sky Pole and Wind-Up Pole

REBS Tactical Dual Hook
Tactical Aluminium Dual Hook

Lightweight, made of forged aluminium
Inner diameter: 6.8″
Minimum Break Load (TIP): 1,000kg
Weight: 1.8kg
Combineable with the following REBS Ladders: Tactical Ladder, CML, UPL

REBS Hook Titanium Pigg Release
Tactical Titanium Hook

Lightweight aerospace grade titanium hook
Available in 5″ or 7″
Minimum break load (TIP): 2,000kg (5″) / 2,200kg (7″)
Weight: 0.65kg (5″) / 0.84kg (7″)
Combineable with the following REBS Poles: Telescopic Pole, Wind-Up Pole

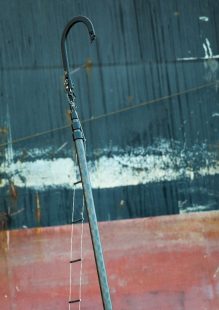

MASTS

All masts we offer are telescopic or rollable and made of lightweight but strong carbon fiber or fiberglass composites. Masts are used to fix ladders to suitable anchor points by means of hooks. Lengths range from submersible 3m masts to platform-mounted 20m masts, unpowered or powered. Various release mechanisms are available to separate the mast from the securely fixed ladder.


REBS Giraffe Tracer
Pneumatic Pole

Erhältlich in 10m & 15m
Fully extended in 6 seconds (10m) and 8 seconds (15m)
Easy to use with push button control for precise up and down movements
Rohre aus vorimprägniertem Karbon
> Manufactured for maximum load capacity at the lowest possible weight

REBS RolaTube Pole Package
Retractable pole system

The RolaTube is made from an innovative low weight bistable composite material that can be coiled into a very compact roll.
Custom made adapters with a 2.5″ or 5″ titanium hook
Available as 3m or 5m high System
Combining the Rolatube pole with the top adapter and the 5 / 7 m (16.5 / 23 ft) wire ladder results in a very portable climbing system with great versatility, low weight, and excellent reach

REBS Sky Pole
Pneumatic Pole

Available in 15m & 20m
Fully extended in 8-10 seconds (15m) and 10-12 seconds (20m)
Easy to use with push button control for precise up and down movements
Unique stability and resistance of carbon tubes. Selected materials are optimized to give low weight and the centre of gravity is designed to as low as possible.

REBS Telescopic Pole
Manual Telescopic Pole

Manual carbon telescopic pole to deploy hook & wire ladder
Available in 2.8m; 6.8m; 8m; 9m; 10m and 12m length
Supplied in a heavy duty nylon bag
Combineable with all tactical hooks with Pigg Release adapter from REBS

LAUNCHERS

Heights of more than 20m can no longer be overcome with conventional masts. This is regularly the case with modern cargo ships or buildings in urban areas. In these operational scenarios, launchers are used, which shoot grappling hooks into position by means of compressed air. Grappling hooks can be connected to ropes as well as wire ladders to realize an ascent. In this way, heights of more than 50m can be overcome. In these cases, the use of an ascender, such as the APA-5, is recommended.


REBS Launcher
Tactical Air Pressure Launcher

Developed in close cooperation with the Norwegian Armed Forces
Maximum height with grappling hook + rope / or +rope ladder: 50m / 25m
Powered by 1l compressed air bottle
The user can adjust the air pressure according to the required height
Grappling hook with spring-loaded folding arms hooks onto any object such as fences, railings or ledges
Optional launcher holder available so launcher can be safely fired even when on the ground.

REBS Compact Launcher
Tactical Air Pressure Launcher

Developed in close cooperation with the Norwegian Armed Forces
Maximum height with Grapnel + rope / or +rope ladder: 35m / 16m
Powered by compressed air
User can adjust the air pressure according to the height needed
> 0.35l cylinder can be refilled with a standard 300 bar diving cylinder
> Grapnel with spring-loaded folding arms hooks onto any object such as fences, railings or ledges

ASCENDERS

If heights of more than 20m have to be overcome or the ascent has to be particularly fast or concealed, various ascending aids come into question: manual ascenders for limited heights are small and compact. Especially in boarding applications, magnetic ascenders can be used covertly, while powered ascenders such as the APA-5 are the ultimate in terms of height, speed, payload, robustness and signature.

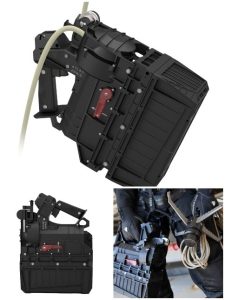

Atlas Powered Ascender APA-5
Powered Ascender

Transports up to two persons at the same time (e.g. for rescuing injured persons)
Load capacity: 272 kg
Performance: approx. 45 m / minute with 113 kg
Approx. 10 kg total weight incl. APA standard battery
Complies with MIL-STD 810F, MIL-STD 167

EXCLUSIVE PARTNER

German representative of H. Henriksen with the REBS product line.

Complemented by other brands such as HQH or ATLAS — built from carbon fiber, titanium and aerospace grade aluminum.

PORTFOLIO

Ladders, hooks, masts, launchers, ascenders

For maritime and urban operations — proven in many NATO armed forces.
